12Ft x 10Ft Jackleg Cabin (Plastisol) | Portable Anti-Vandal Office or Canteen Space
Maximize flexibility and value with our 12Ft x 10Ft Jackleg Cabin (Plastisol) a cost-effective, portable space solution ideal for construction sites, offices, canteens, break rooms, and more. Built from durable, high-quality materials, this unit offers a robust, insulated, and secure environment that’s ready for immediate deployment from stock at competitive pricing.
Featuring an open-plan design, the cabin includes a fixed layout with the option of a fitted canteen, making it an ideal choice for quick site setup or affordable extra workspace. Its anti-vandal jackleg design allows for secure placement on uneven surfaces, while jacklegs enable easy relocation as your site requirements evolve.
12Ft x 10Ft Jackleg Cabin (Plastisol) Key Features:
Durable Anti-Vandal Construction:
Built with heavy-duty Plastisol-coated steel exterior for superior weather protection and vandal resistance.
Fully Insulated & Weatherproof:
Maintains internal comfort with insulated walls, roof, and flooring for all-season use.
Pre-Installed Electrics:
Fitted with an electric timed panel heater, LED lighting, and twin 13A sockets—ensuring energy-efficient performance.
Open-Plan Interior:
Open space design allows for use as a site office, canteen, break room, or meeting space.
Low-Maintenance Interior:
Featuring vinyl flooring, UPVc double-glazed window, and vinyl-faced plasterboard walls for easy cleaning and longevity.
Specifications:
| Feature | Details |
| External Length | 12ft (3.66 meters) |
| External Width (excl. Jacks) | 10ft (3.05 meters) |
| External Width (incl. Jacks) | 10.4ft (3.17 meters) |
| External Height | 8.6ft (2.63 meters) |
| Internal Length | 11.6ft (3.54 meters) |
| Internal Width | 9.6ft (2.93 meters) |
| Internal Height | 7.3ft (2.23 meters) |
| Door Dimensions (W x H) | 0.84m x 1.98m |

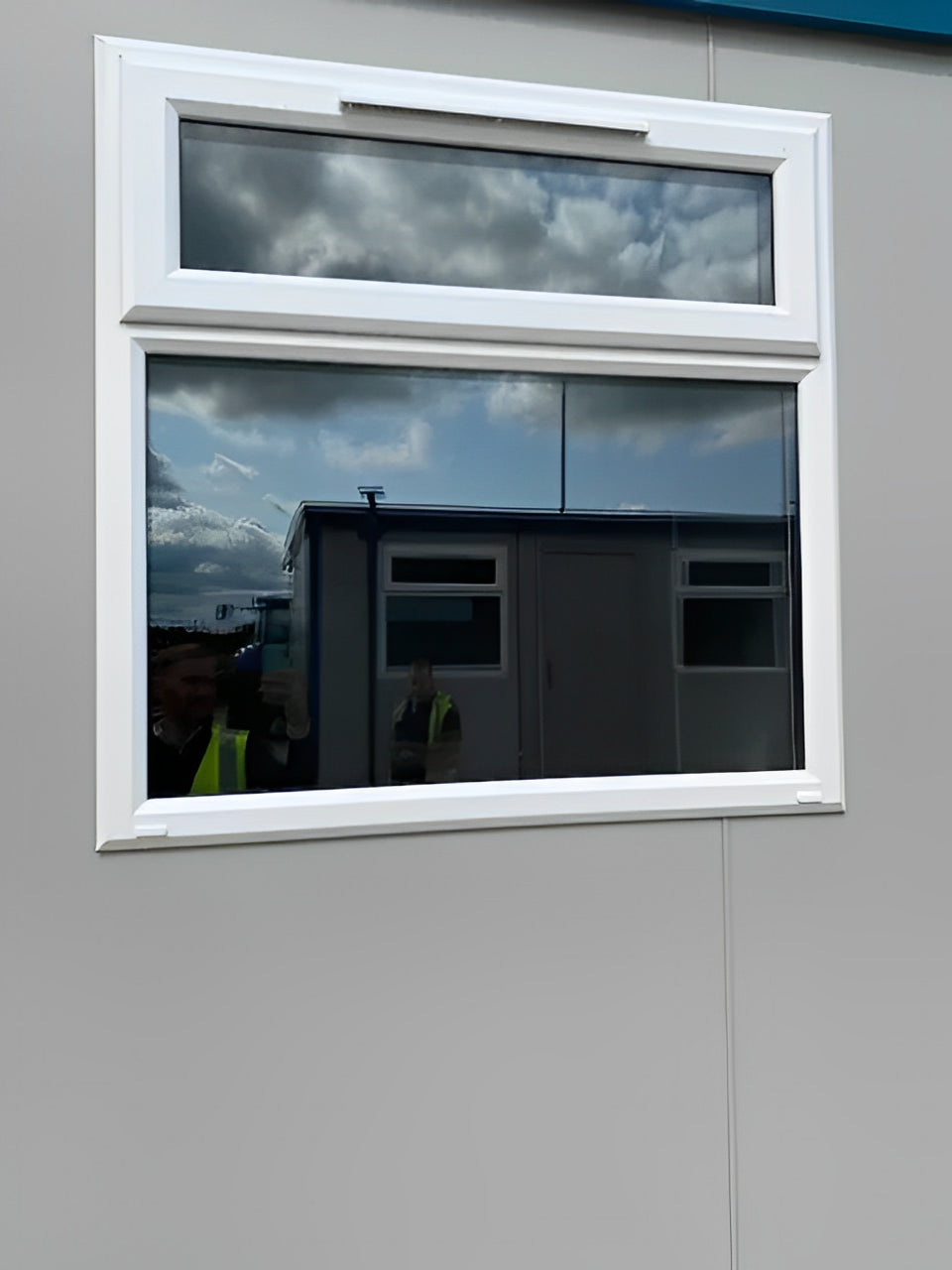

| Windows | 1 x UPVc Double Glazed Window (Fixed) |
| Lighting | 1 x LED Strip/Light |
| Heating | 1 x Electric Panel Heater with Timer |
| Electrical Sockets | 2 x Twin 13A Sockets |
| Electrical Supply | 230V, 63 Amp RCD required |
| Flooring | 2mm Vinyl Cushion Grey Wood Plank Effect |
| Floor Base | OSB3 Board 18mm |
| Walls | Vinyl Faced White Plasterboard (12.5mm) |
| Roof & Wall Insulation | Fully Insulated |
Available Options (Built-to-Order Units):
- Internal Partitioning
- Additional Windows or Doors
- Toilet or Canteen Facilities
- External Cladding Color Options
- Floor Finish Upgrades (Carpet, Heavy Duty Vinyl)
Contact our team for customized configurations tailored to your project.
Applications:
- Construction Site Offices
- Portable Canteen or Break Rooms
- Temporary Classrooms or Meeting Rooms
- Retail Storage or Point-of-Sale Units
- Event Coordination Cabins
Benefits:
-
Quick Delivery from Stock—Ready for nationwide dispatch.
-
Portable & Relocatable—Jacklegs allow flexible site placement and lifting.
-
Secure Anti-Vandal Design—Ideal for remote or high-risk locations.
-
Cost-Effective Solution—One of the most affordable portable cabins in the USA market.
-
Low Maintenance—Easy-to-clean internal finishes reduce upkeep costs.
