Product Details
Flat pack office cabin for sale. Collapsible office cabins ideal for sites with restricted access.
This 2m cabin is the smallest in our flat pack cabin range.
This office cabin arrives flat packed, is man portable and is ideal for erecting in previously inaccessible locations. It’s simple assembly (with a socket set) takes about 45 minutes.
Manufactured from fully galvanised steel (no rusting), this flat packed cabin has attractive smooth panelling, finished in a powder coated moss green on the outside and an off white powder coat on the inside.

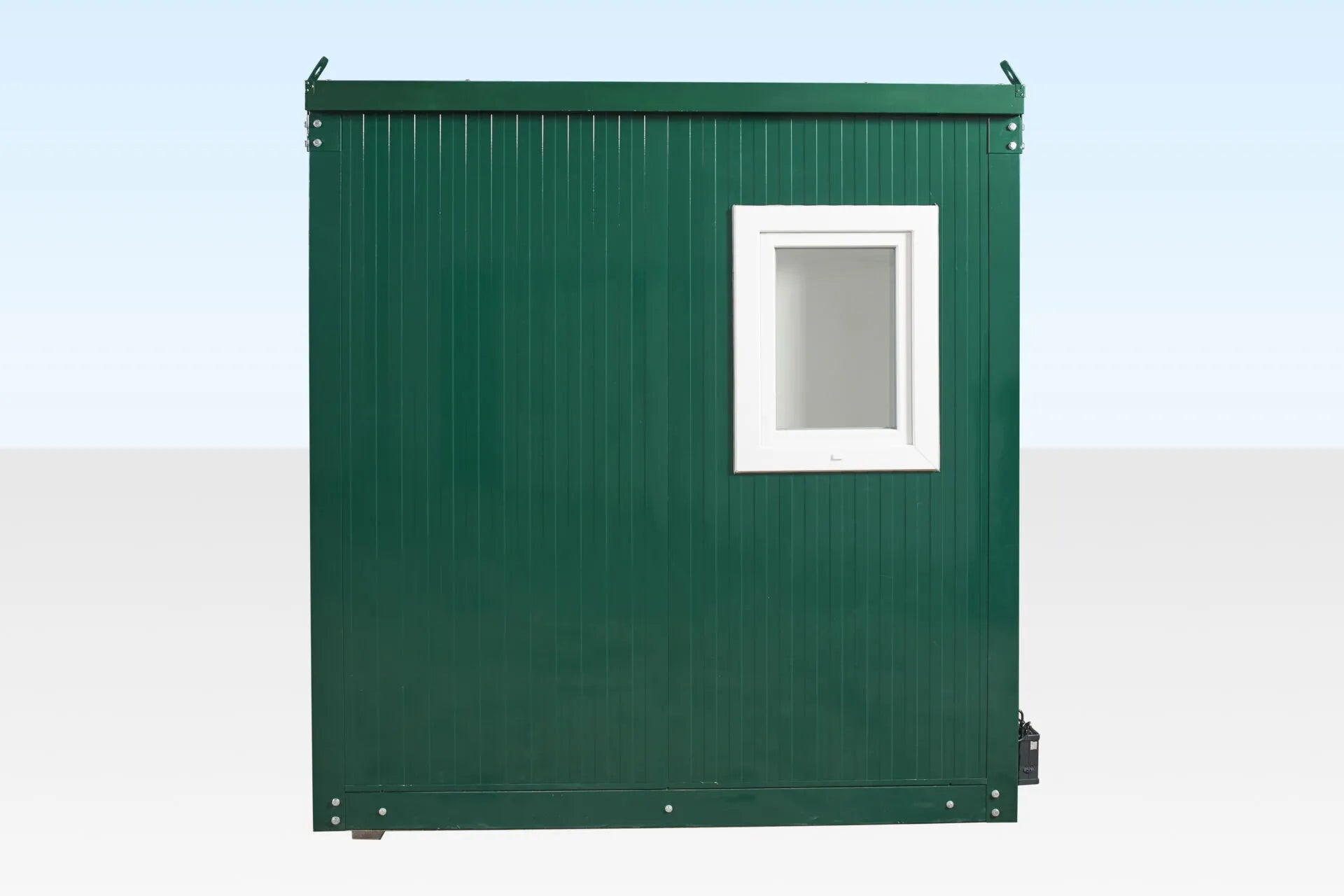

The unit has a guttered roof and features two double glazed u-PVC windows fitted as standard. The interior of the insulated cabin is pleasantly light and airy with a durable and smart wall finish – suitable for surface mounted electrics.
Once assembled the unit can be moved by crane / forklift or demounted back into it’s neat flat-pack form for storage purposes. This unit can be linked side to side or end to end to provide additional space at any time after initial assembly.
PRODUCT SPECIFICATIONS
| External Length (m) | 2.25 |
| External Width (m) | 2.31 |
| External Height (m) | 2.35 |
| Internal Length (m) | 2.13 |
| Internal Width (m) | 2.19 |
| Internal Height (m) | 2.15 |
| Door Width (m) | 0.79 |
| Door Height (m) | 1.97 |
| Height (Flatpacked) (mm) | 450 |
| Length (Flatpacked) (m) | 2.25 |
| Width (Flatpacked) (m) | 2.31 |
| No. of Windows | 2 |
| Weight (Flatpacked) (kg) | 665 |
| Weight Heaviest Part (when Demounted) (kg) | 74 |
| Floor Type | 18mm Marine Plywood |
| Floor Loading | 250kg/m2 evenly distributed |
| Internal Floor Covering | 2mm PVC Linoleum (flash point B1 difficult to burn, smoke density Q1) |
| Internal Wall Covering | 0.60mm galvanised steel electrostatic powder coated in RAL9002 |
| Insulation | 50mm EPS insulation |
| Electrical Requirements. (Amps) | 32amp |
